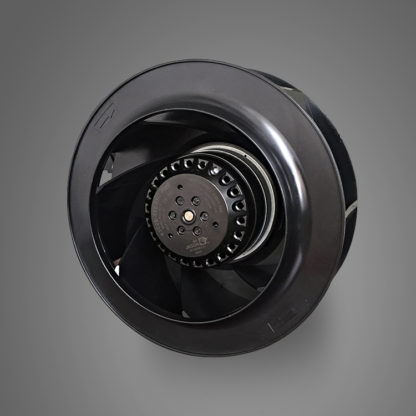

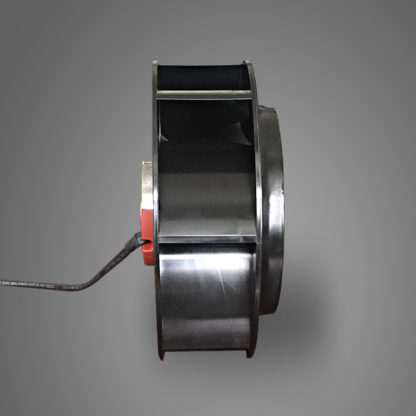

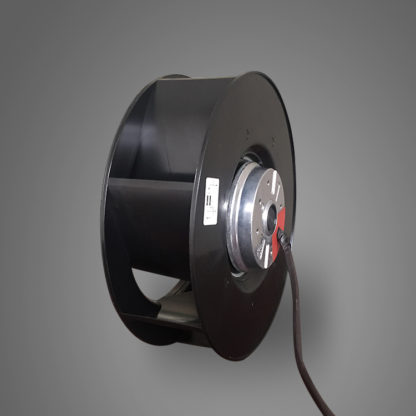

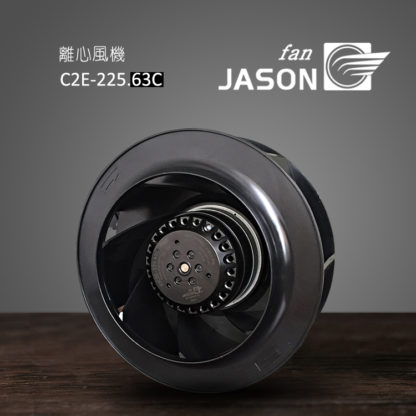

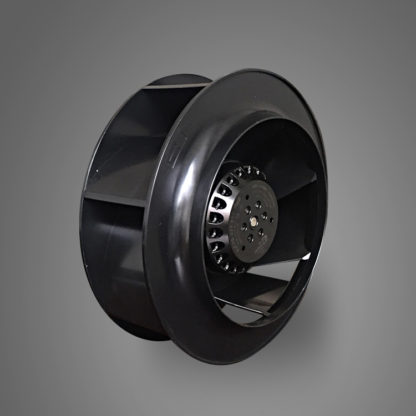

2800rpm 1200m3/H Centrifugal Fan 22569mm C2e-225.63c

$75.00 $55.00

  • Material: Plastic
  • Type: Centrifugal Fan
  • Mounting: Box
  • Voltage: Single Phase AC 115V/230V/400V
  • Air Flow: 419~791cfm
  • Product Type: Plastic Impeller Industrial Extractor Fans
  • Usage: for Refrigerate, for Air Conditioner, for Manufa
  • Trademark: Jason Fan
  • Specification: CE
  • Blade Material: Plastic
  • Electric Current Type: AC
  • Certification: CSA, RoHS, CE, CCC
  • Dia. of Fan: 225mm
  • Condition: New
  • Warantee: One Year Guarantee Time
  • Cooling Method: Direct Cooling
  • Transport Package: Carton, Pallet
  • Origin: Zhejiang, China


Forward curved Telecom Cabinet Centrifugal fan 225mm

Cage type capacitor structure external rotor motor
Black PA nylon one-time injection moulding
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-40ºC ~ +80ºC (temperature) 0% ~ 95% (humidity)
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F,
Protection Grade
Quick Details:

Type Centrifugal Fan
Impeller Black PA nylon one-time injection moulding
Motor Structure Shaded pole/cage type capacitor structure external rotor motor
Protection Automatic recovery thermal protector
Temperature & Humidity -30ºC ~ +65ºC, 0% ~ 95%
Withstand Voltage AC 1800V at 0.5mA 50/60Hz
Power connection UL3266-18 Lead wire
Protection Grade IP44
Insulation Systerm F
Model Number C2E-225.63C
Voltage 230VAC
Power: 50/60Hz
Air Volume 708-792CFM
Speed 2650-2950RPM
Certification CE, ROHS, CSA
Unit weight 2.3KG
Color Black

Packaging & Delivery:
Packaging Details: 12 PCS/CTN
Weight: 30KGS/CTN
Size: 54*54*43 cm
Delivery Detail (sample): Shipped in 3-8 days after payment
2800rpm 1200m3/H Centrifugal Fan 22569mm C2e-225.63c
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing City,Zhejiang Province, China, about 30 mins from Wenzhou Airport .Warmly welcome to visit us!
Q: What products do you make?
A: We have been producing AC cooling axial fans , Centrifugal fans, Filter fans etc since established in 2006.
Q: What information do you need in order to get a quotation?
A:  Generally, we need the information like quantity, size, voltage , air flow to select a right or a similar fan for you and quote you.
Q: Can I have samples for testing before placing orders?
A:  Yes. We suggest that our customers have some samples of their required fans for quality testing first.
Q: Can I have a discount for the quoted price?
A:  Yes. The price is quoted based on the quantity.
Q: How is your quality control systerm?
A : Each fan needs to go though strict inspection by QC before delivery, or inspected by 3rd party who customer appoints.
Q: Does the product have CE,UL etc approval?
A : Yes. All of our products have CE,RoHS approval, some have UL approval.
Q: Can you make the fan with our company’s logo?
A : Yes.
Q: What is your payment term?
A : TT,LC.
