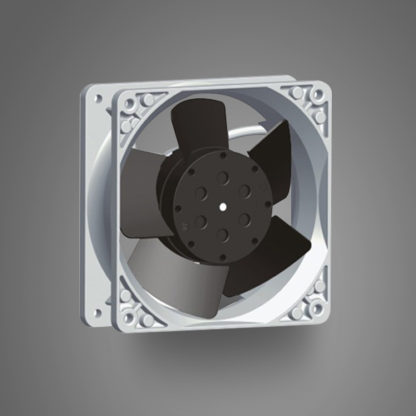

AC Fan Compact Metal Fans (FJ12032MAB)

with a self-contained electric motor of an output not exceeding 125W

Size of the fan: 120*120*38 mm
Specification:
Nominal Voltage: V AC 115/230 (50/60Hz)
Voltage Range: V AC 70…265
Nominal Speed: Min-1 2500…2800
Max. Flow rate: M3/h 160…180
Max. Flow rate: CFM 94.4…106
Noise free air: D B(A) 37…41
Power consumption: W 28
Service life(70centigrade) / (40centigrade) h 35 000 / 70 000
Bearing system: Ball bearings
Fan housing / impeller: Aluminum alloy / Metal fan housing and impeller
Electrical motor: With external rotor shaded-pole motor. Impedance protect
Applications: Air conditioning, refrigeration, ventilation, drying, cooling
Protecting grade: IP 54
Mass: G 540
