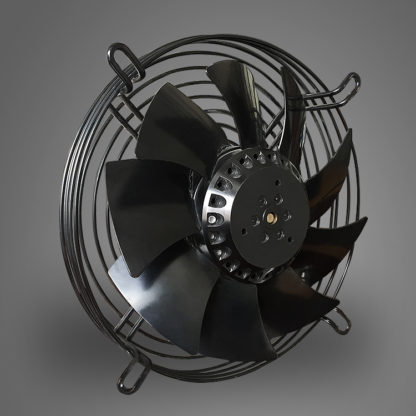

High Speed AC Condenser Cooling Fan (C2E-200. FGV)
Cage type capacitor start external rotor motor

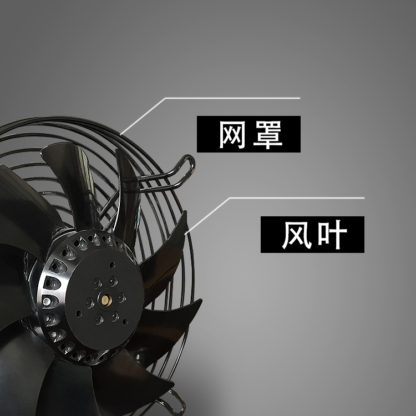

Pressed from metal armor plate, impellers are welded to
motor rotor and its surface is black and anti-corrosion
Steel wire is finished with black paint and anti-corrosion treatment
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-40ºC ~ +80ºC (temperature) 0% ~ 95% (humidity)
Automatic recovery thermal protection
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Design according to IEC61858 Grade F,
|Type||Sickle Impeller Fan|
|Impeller||Metal armor plate|
|Motor Structure||Cage tyoe capacitor start external rotor motor|
|Protection||Automatic recovery thermal protector|
|Temperature & Humidity||-40ºC ~ +80ºC, 0% ~ 95%|
|Withstand Voltage||AC 1800V at 0.5mA 50/60Hz|

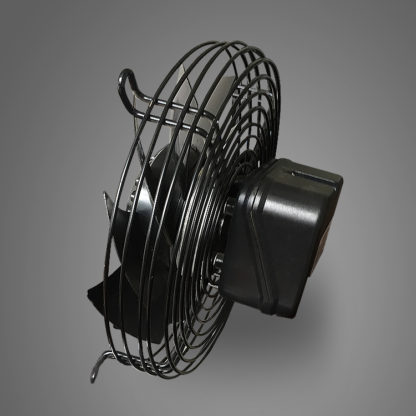

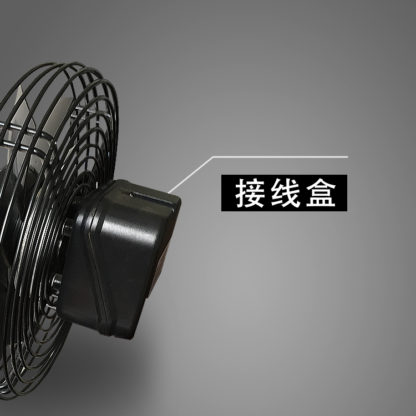

|Power connection||Lead or Terminal connection|
|Certification||CE, ROHS , CSA|
|Color||Black and anti-corrosion|
Packaging & Delivery:
Packaging Details: 1 PCS/CTN
Size: 25*25*20 cm
Delivery Detail (sample): Shipped in 3-8 days after payment
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing City,Zhejiang Province, China, about 30 mins from Wenzhou Airport .Warmly welcome to visit us!
Q: What products do you make?
A: We have been producing AC cooling axial fans , Centrifugal fans, Filter fans etc since established in 2006.
Q: What information do you need in order to get a quotation?
A: Generally, we need the information like quantity, size, voltage , air flow to select a right or a similar fan for you and quote you.
Q: Can I have samples for testing before placing orders?
A: Yes. We suggest that our customers have some samples of their required fans for quality testing first.
Q: Can I have a discount for the quoted price?
A: Yes. The price is quoted based on the quantity.
Q: How is your quality control systerm?
A : Each fan needs to go though strict inspection by QC before delivery, or inspected by 3rd party who customer appoints.
Q: Does the product have CE,UL etc approval?
A : Yes. All of our products have CE,RoHS approval, some have UL approval.
Q: Can you make the fan with our company’s logo?
A : Yes.
Q: What is your payment term?
A : TT,LC.
Jason Fan was established in year 2006. Being a professional AC fan enterprise of design and production, Jason Fan has developed three main series of fans,which covering AC axial fans, air filter fans and centrifugal fans. In 2013, we completed the development of a DC type fan which applied for welding industry. Meanwhile, we are
proceeding the development of EC axial fan. Until now ,We have gotten approvals of CE, CCC, CSA, RoHS etc.. We can also apply for any relevant certificate if required by customers.
Luxury originates in details.We wish and devote urselves to accomplishing the luxurious dream for Jason Fan. From the beginning to end, we care about the thread of every screw and the best choice of every raw material. The continuous renew and adjustments of technology make us a perfect combination of machines and staff.
Skill achieves excellence. We set up a Professional laboratorysystem, including test equipments for air flow, noise and high-low temperature alternating cabinet (salt spray chamber included), etc. Our technician team members achieve their ideas of air movement solution through circuit analysis, test of reliablility and environment in this laboratory system. As response to the new rule of EU ERP regulations, we have accomplished the efficiency test of every model we have .
The rotation of every blade is the smile of Jason Fan, the drive of every motor is the heartbeat of Jason Fan. Jason Fan, a young, enthusiastic and booming enterprise, obedience to design idea of Ecomagination, will always keep going on and on to contribute ourselves to the better future of human. We hereby sincerely recruit for excellent distributors in Brazil, Russia, USA, Europe, Australia, etc. to exploit a new environmental protection world for cooling, ventilation and refrigeration field.
