Description
with a self-contained electric motor of an output not exceeding 125W

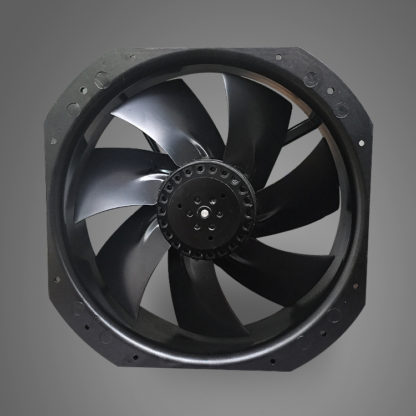

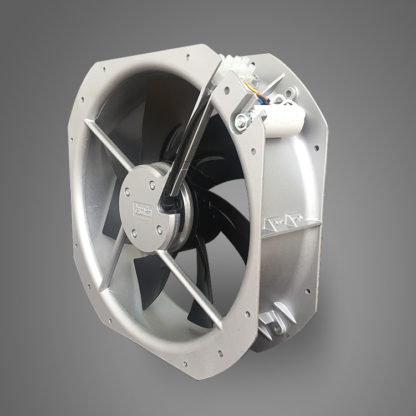

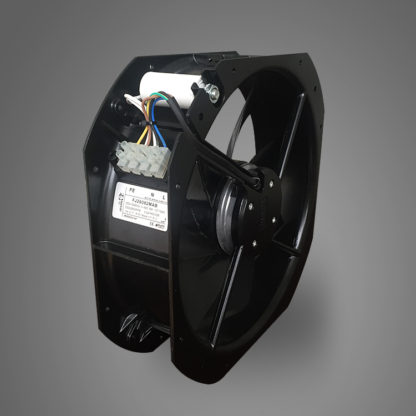

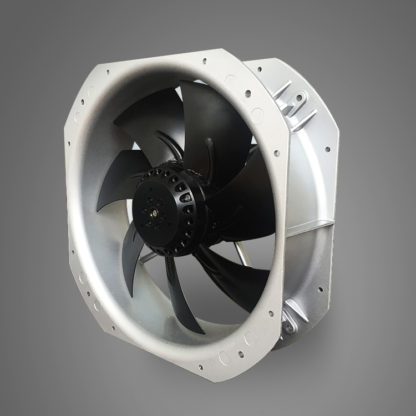

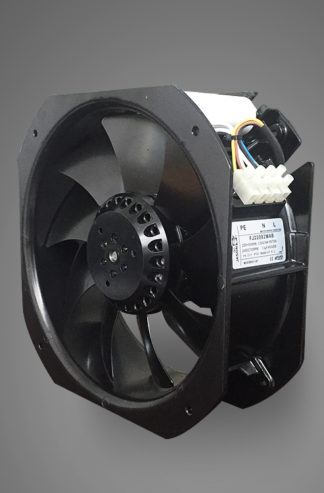

Metal blade cooling fans (FJ28082MAB)
Size of the fan: 280*250*80 mm
Quick Details
Type: cooling Flow Fan Electric
Current Type: AC
Mounting: Free Standing Blade
Material: Plastic
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Jasonfan
Model Number: FJ28082MAB
Voltage: 115-380V Power: 50/60Hz
Air Volume: 602-1150CFM
Speed: 1420-2750RPM
Certification: CCC, CE, CSA, ROHS ,UL
After-sales Service Provided: No overseas service provided
Motor Structure: external rotor motor
Safety: Thermally protected
Operation System: Maintain-free double high precision ball bearings.
Dielectric Withstand Voltage: AC 1800V at 0.5mA 50/60Hz
Allowable Ambient Temperature Range: -25~+90 degree
Power Supply Connection: PA-10(Terminal connection)
Insulation: F Class
Protection Grade: IP54
Unit weight: 2.8KG
Packaging & Delivery
Packaging Details: cooling fan motor is with flexible wrapping and standard carton.
5pcs/Carton.
Weight:15.5kg/Carton.
Carton size:54*33*33.5CM.
Delivery Detail: Shipped in 5 days after payment
