Description
Overview
- Allowable environment temperature and humidity range: (under unconcretionary condition)-20°C ~+65°C (temperature) 0% ~95% (humidity)
- Dielectric withstanding voltage: AC 1800V at 0.5mA, 50/60HZ
- Insultaion Isolation Grade: F Protection Grade: IP 54
- Unit Weight: 324g
Material
- Fixed guard: Steel wire is finished with black oven backed painting and anti-corrosion treatment.
- Impeller: pressed from metal armor plate, impellers are installed on rotor by press. surface is finished by black paint and anti-corrosion treatment.
- Bearing Type: Maintain-free NSK ball bearing.
- Power Supply Connection: Wire connection or terminal box set.
| Specifications | |
| Category | Air filter fan |

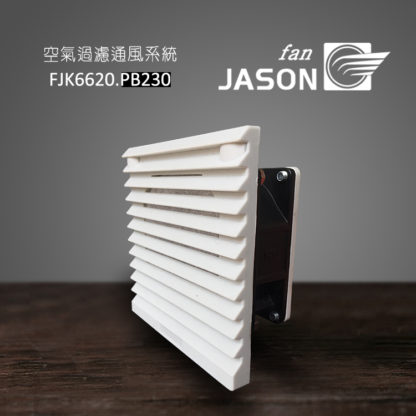

| Type | FJK6620.PB |
| Rated Voltage | 230V |
| Frequency | 50/60Hz |
| Input Power | 11W-13W |
| External Dimensions | 106.5*106.5*55 |
| Max Air Flow | 22-26m³/H |
| StaticPressure | 29Pa-33Pa |
| Noise | 28-30dB |
| Weight | 324g |
Dimensions
Rotation direction of blades : CCW seen from the front impellers
Power Connection: Lead or terminal box
Unit weight: 324g
